Introduction

Voice over LTE (VoLTE) is a way to make calls via an internet-based protocol on mobile networks using a standard called IP Multimedia Subsystem (IMS). IMS implementations have historically caused trouble due to their increased complexity and device interdependence. This increase in complexity has traditionally only externally manifested with device incompatibility problems. In the past, it wasn't uncommon to find devices that required special firmware to utilise VoLTE and WiFi Calling.

However, I have always been interested in another risk to this increased complexity. Security.

With an IMS implementation, it is up to the mobile network to choose how they want to implement the services, and what configurations they want to use. Your phone then talks directly with these servers. Mobile networks have a responsibility to ensure that these servers are kept up to date and secure, and that their configurations do not lead to unnecessary data exposure.

Unfortunately, today we will be looking at a great example of a mobile network that has validated my concerns.

O2 UK

On 27 March 2017, O2 UK launched their first IMS service.^[1] Dubbed "4G Calling" by the network, it provided improved voice quality and a better in-call data experience as customers did not drop down to 3G when making a call.

As someone who had recently moved to O2, I was interested in the network's IMS implementation, particularly which voice codecs were supported by the network for calls made on 4G/WiFi Calling.

Using an application known as Network Signal Guru (NSG) on my rooted Google Pixel 8, I called another O2 customer (with a 4G VoLTE compatible device) to try and determine audio quality.

A bug within NSG on modern Google Pixel devices with Samsung Modems means that the VoLTE section of the the app doesn't automatically populate the codec used for the current call, meaning that I instead had to look at the raw IMS signalling messages sent between my device and the network to find this out.

Signalling messages

Quite quickly I realised something was wrong. The responses I got from the network were extremely detailed and long, and were unlike anything I had seen before on other networks. The messages contained information such as the IMS/SIP server used by O2 (Mavenir UAG) along with version numbers, occasional error messages raised by the C++ services processing the call information when something went wrong, and other debugging information. However, most notable were a set of five headers near the bottom of the message:

SIP Msg
...
  P-Mav-Extension-IMSI: 23410123456789
  P-Mav-Extension-IMSI: 23410987654321
  P-Mav-Extension-IMEI: 350266809828927
  P-Mav-Extension-IMEI: 350266806365261
  ...
  Cellular-Network-Info: 3GPP-E-UTRAN-FDD;utran-cell-id-3gpp=2341010037A60773;cell-info-age=26371

Two sets of IMSIs, two sets of IMEIs, and a Cell ID header. How curious…

Sure enough, when comparing both the IMSIs and IMEIs in the message to those of my own devices, I had been given both the IMSI and IMEI of my phone which initiated the call, but also the call recipient's.

Curious, I looked into the Cellular-Network-Info header. I had never seen this SIP header before but a quick bit of research led me to learn how to decode it. The start of the value, 3GPP-E-UTRAN-FDD indicates that the cell data is for 4G (officially known as E-UTRAN) FDD (frequency division duplex). The folllowing section starting with utran-cell-id-3gpp is broken down into 3 parts:

• the first 5–6 digits are the network PLMN of the recipient
• the following 4 characters are the recipient's Location Area Code (LAC) in hexadecimal
• the final 7 characters are the recipient's Cell ID, again in hexadecimal

The final section represents how old the data is in seconds. This is present when the device isn't currently connected to a network, such as when you have no signal or are relying on WiFi Calling.

That means for the above example, we are able to work out that the recipient:

• is currently connected to the O2 network (234-10)
• is within LAC 0x1003 (decimal: 4009) on Cell ID 0x7a60773 (decimal: 128321395)
• uses a Google Pixel 9 (IMEI: 350266806365261)
• has an O2 SIM (IMSI: 23410987654321)

This is bad.

With all this information, we can make use of publicly crowdsourced data, collected by tools such as cellmapper.net, to cross-reference this information to work out a general location of the user.

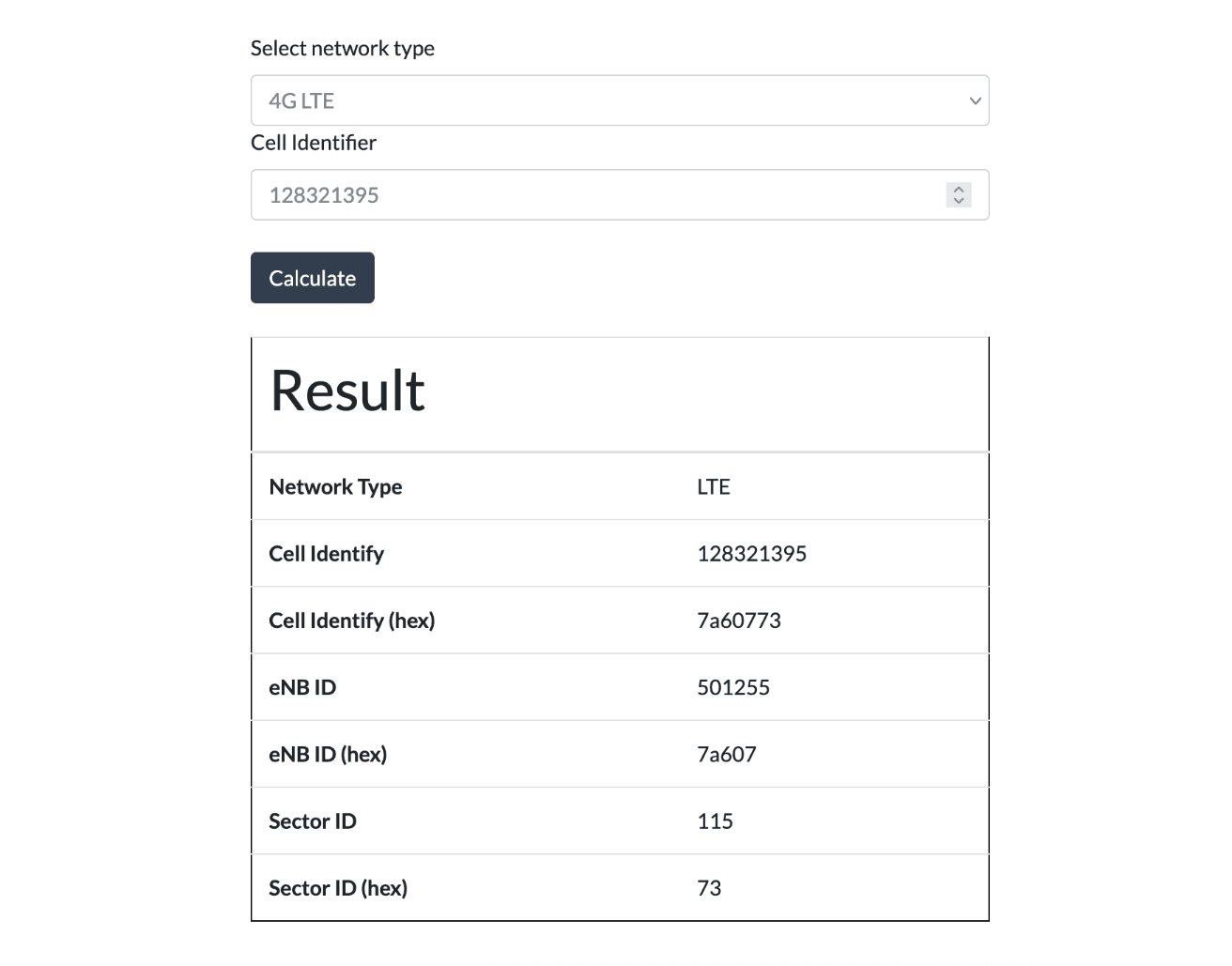

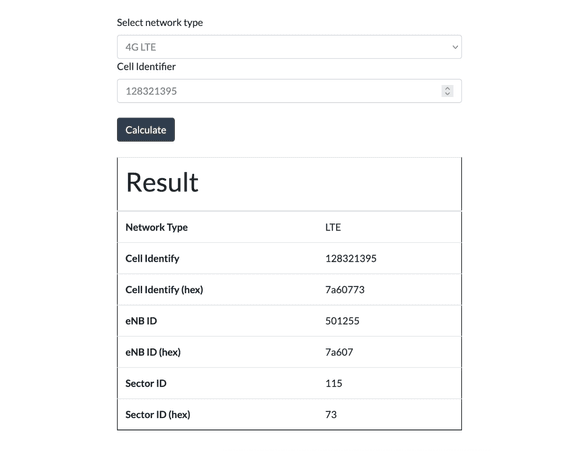

First, we just throw the Cell ID into a tool that calculates what site ID this corresponds to:

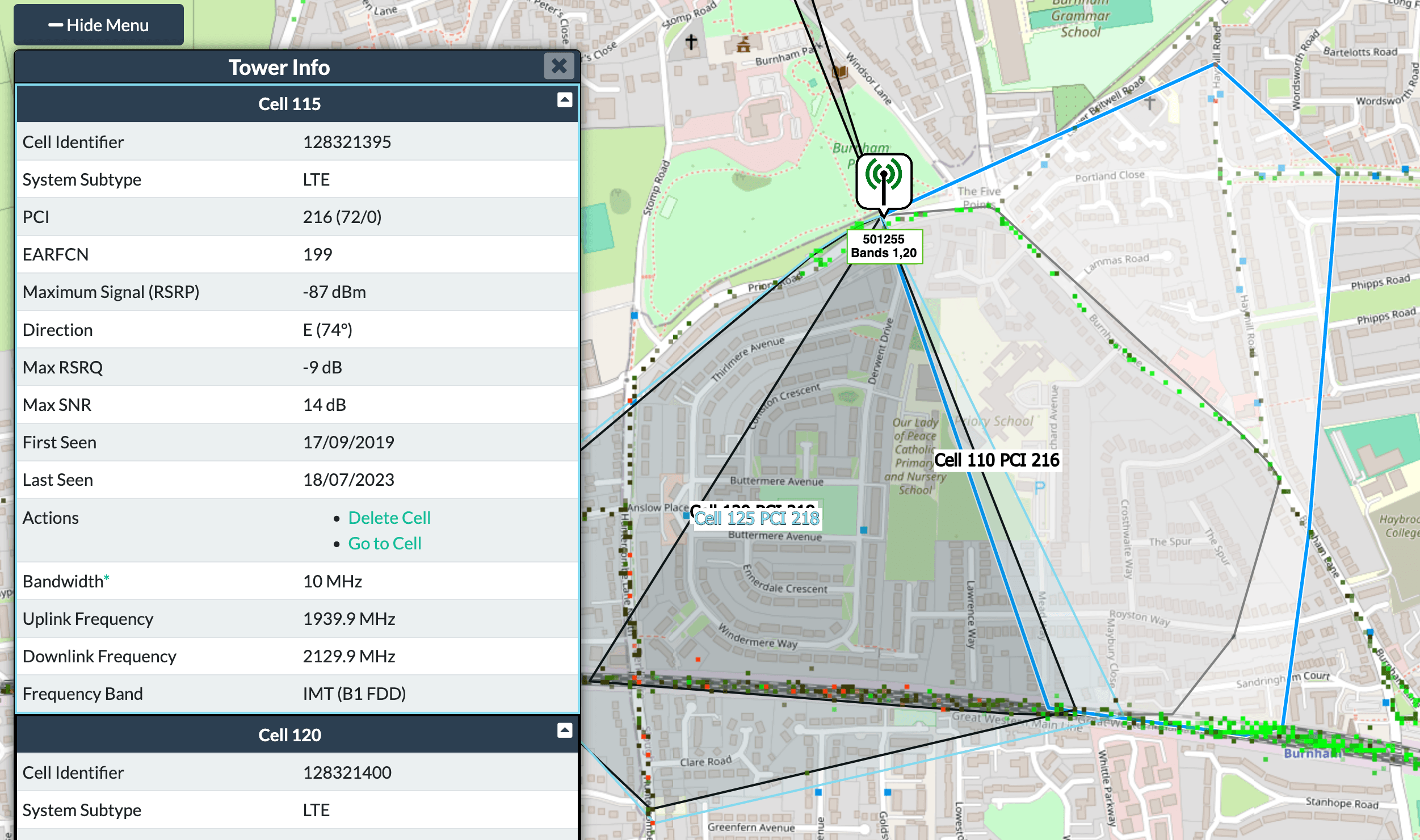

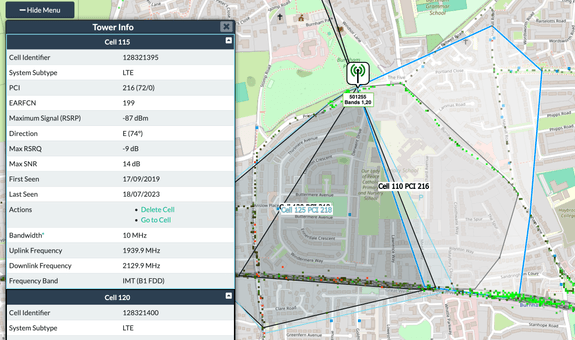

Then we just have to search for that site on Cellmapper's map:

Here, you can see the macro cell the user was on at the time of the call. While this has a relatively sizeable coverage area, shown by the selected polygon with the blue outline, dense urban areas will make use of very many sites (such as small cells, which are often fitted directly to streetlamps) with small coverage areas. Each site in these areas can often cover areas as small as 100m². In a city, this becomes an extremely accurate measure of location.

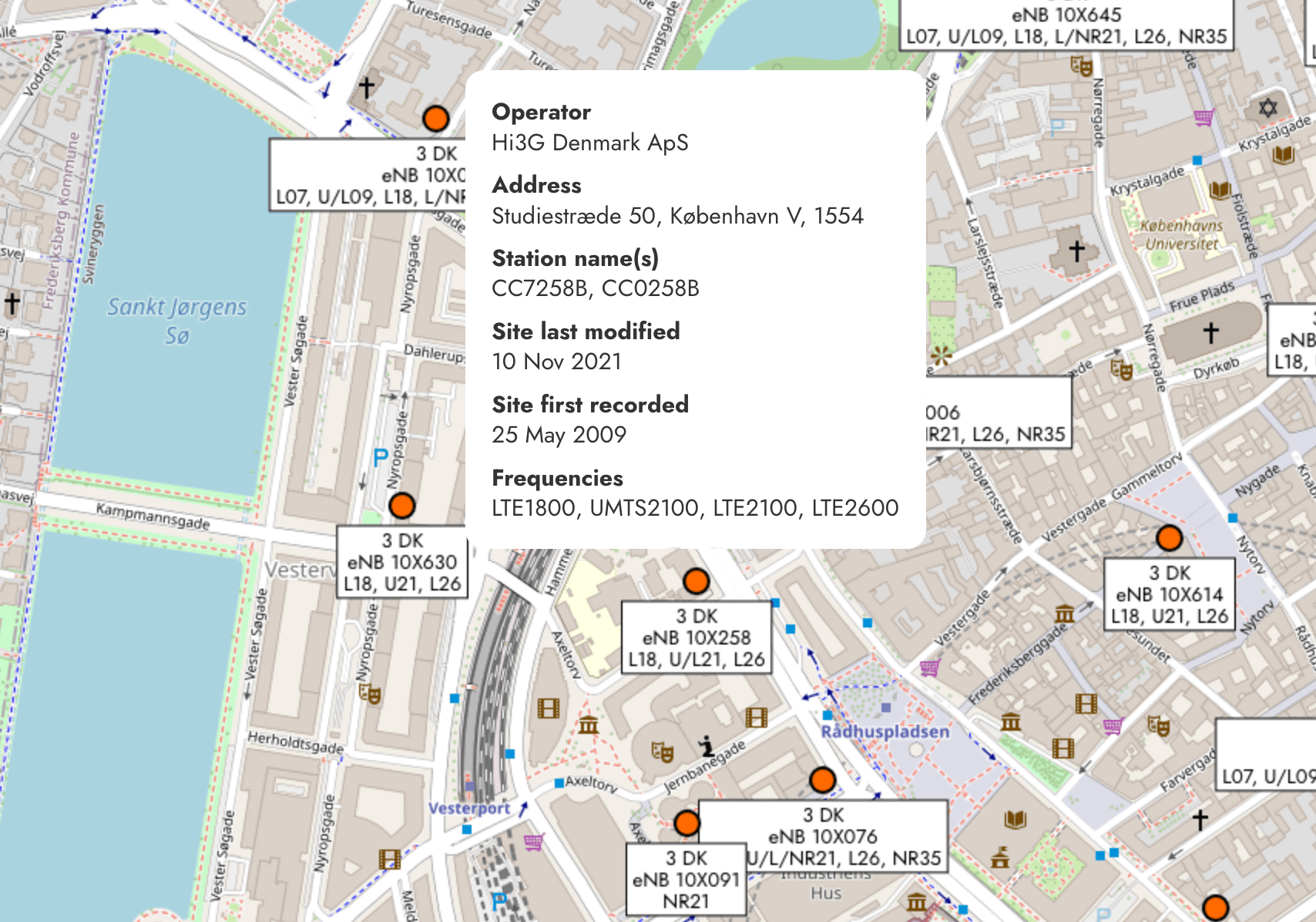

I also tested the attack with another O2 customer who was roaming abroad, and the attack worked perfectly with me being able to pinpoint them to the city centre of Copenhagen, Denmark.

I think it's important to note here that my device is in no way special. It's not doing anything odd to the network and hasn't behaved any differently. All it is doing is allowing me to see the information being sent to it. This effectively means that every O2 device that is making a phone call on IMS (4G Calling / WiFi Calling) is receiving information that can be used to trivially geolocate the recipient of the call.

What I'd like to see change

O2 must remove the highlighted headers from all IMS / SIP messages to protect the privacy and safety of customers. It would be logical to also disable debug headers, as I imagine a scenario where those unintentionally leak further information could occur. There is no reason for any device outside of the network core to see those headers.

I'm extremely disappointed as an O2 customer to see a lack of any escalation route to report these kind of potential vectors for attack. EE, a rival network, have a clear and well defined escalation route (see https://www.bt.com/about/contact-bt/responsible-disclosure) that I imagine would have prevented the need for this information to have been publicly shared. I don't want to be the enemy, I simply want to feel comfortable using my phone.

Conclusion

Any O2 customer can be trivially located by an attacker with even a basic understanding of mobile networking.

There is also no way to prevent this attack as an O2 customer. Disabling 4G Calling does not prevent these headers from being revealed, and if your device is ever unreachable these internal headers will still reveal the last cell you were connected to and how long ago this was.

Attempts were made to reach out to O2 via email (to both Lutz Schüler, CEO and [email protected]) on the 26 and 27 March 2025 reporting this behaviour and privacy risk, but I have yet to get any response or see any change in the behaviour.

Notes

^[1] https://www.engadget.com/2017-03-29-o2-wifi-4g-calling.html

Article edited by David Wheatley.
